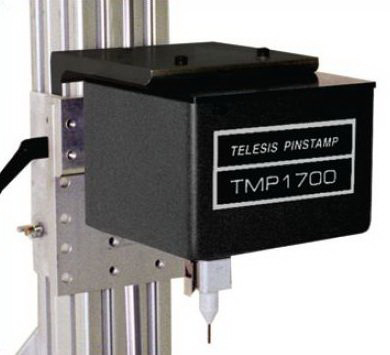

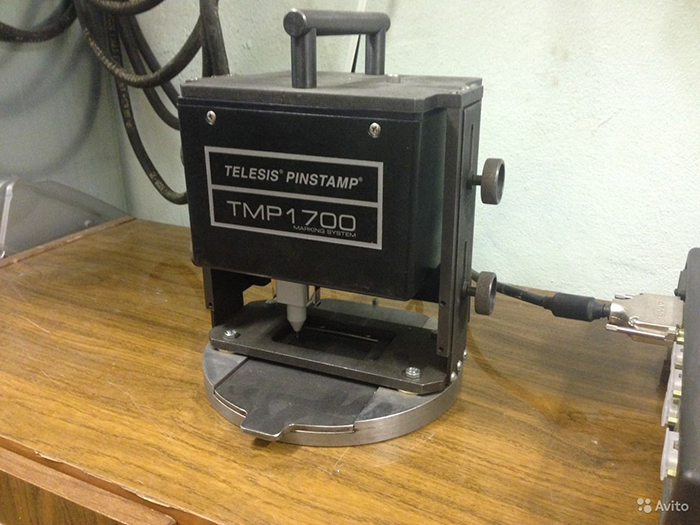

The most widely used permanent pin-marking system in the world, compact and easy to use. The 63.5 x 38mm (2.5 x 1.5") marking window satisfies most basic product identification needs.

Features

• 1-1/2" x 2-1/2" (38.1mm x 63.5mm) marking window
• Rugged, low-maintenance X/Y platform
• Compact Marking Head - approximately 6.6" x 6.2" x 4.7" (168mm x 158mm x 120mm)
• Marks a wide range of materials from soft plastics to hardened steel - up to Rc60
• Shutter assembly protects marking head from solid and liquid contaminants
• Self-Contained, state-of-the-art TMC470 controller features two serial ports, USB port and Ethernet port.
• Dot density up to 200 dots-per-inch (79 dots-per-centimeter)
• Choice of interchangeable marking pin types for depths from 0.001" - 0.018" (0.03mm - 0.45mm)
• Pin travel accommodates surface irregularities to 0.25" (6mm)
• Automatically generates serial numbers, time, date and shift codes
• Stores up to 400 marking patterns
• Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers

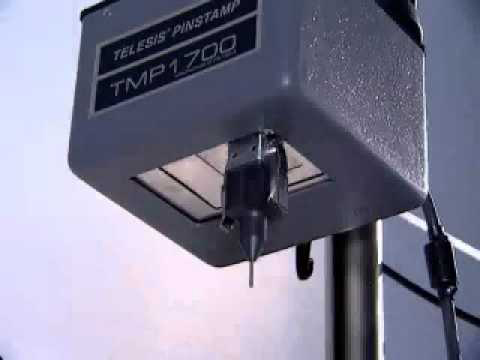

• A protective shutter assembly shields the TMP1700 marking head from liquid and solid contaminants.
